DRUM PALLETIZER (CORNER)

Product Code: DTP05-R500

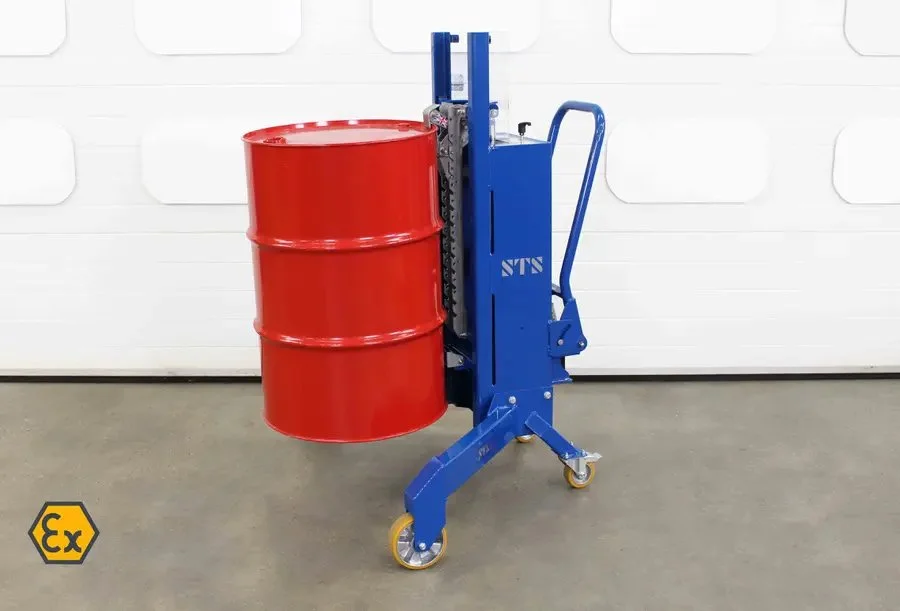

Universal drum catch on the drum palletizer (Corner) attached to a steel and plastic barrel.

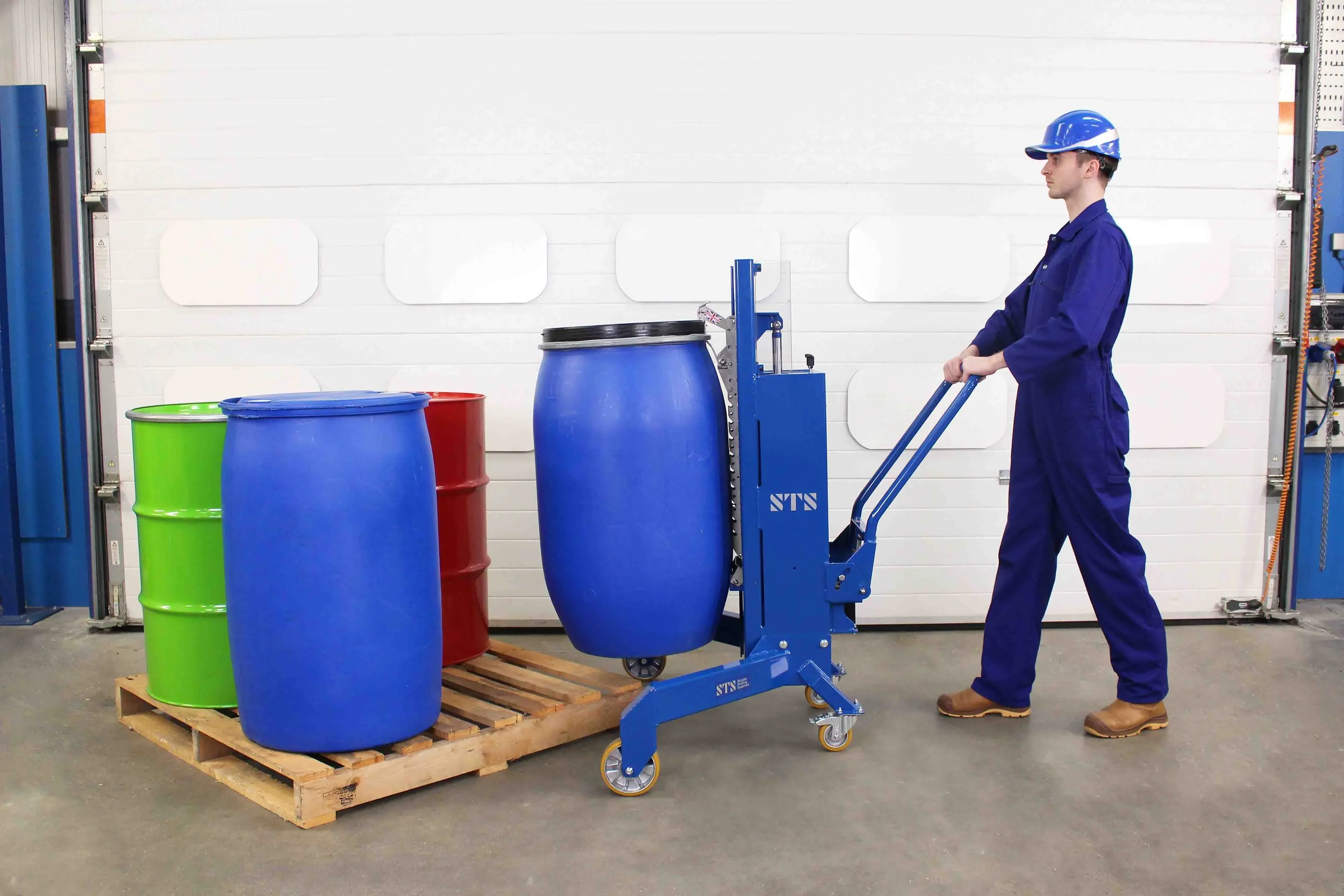

The Corner Drum Palletizer has been designed to have a smaller footprint and a lighter weight design then our two other models. This drum palletizer approaches the corner of a pallet using the 90 degree leg design. It is important that the corner of a pallet is accessible to make the most of this machine. Drums can be palletized on and off pallets quickly and efficiently using this machine.

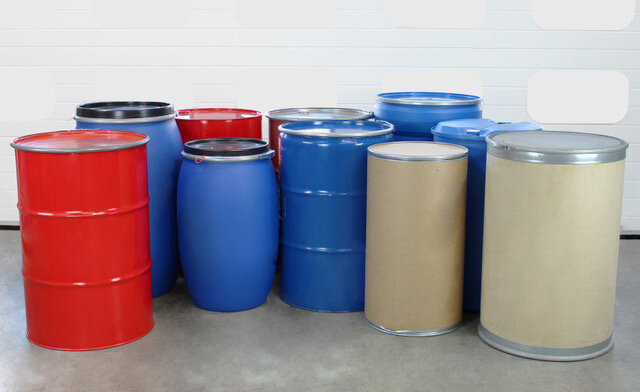

The stainless-steel ladder rack and universal catch allows this drum palletizer to accommodate different drums sizes from 13 to 58 gallons made from either steel, plastic or fibreboard materials. Operators can make adjustments to the gripper attachment at the front of the palletizer by simply adjusting the position of the top hook. With drums coming in many shapes and sizes a versatile lifter is a must-have in a modern plant which handles drums on a regular basis.


Operator uses the manual hydraulic pump on the corner drum depalletizer to lift and lower drums.

Each hydraulic pump assembly is manufactured by qualified technicians to ensure they are clean and reliable. Hydraulic circuits are flushed through to ensure no debris or dirt passes through the pump unit. During the manufacturing of the drum palletizers engineers test and inspect all components to ensure they work smoothly and effectively throughout the life of the unit.


Rear wheels on the corner drum depalletizer

This product performs well in all conditions due to the high-quality wheels fitted. We use precision bearings on all wheels which offer premium wheel performance in harsh work environments. To get the most out of this palletizer we recommend using it on flat and level ground.



The DTP05 Corner Drum Depalletiser can handle a wide variety of drum types and sizes – especially useful if you handle different types of drum on a daily basis. For a detailed breakdown of the drums with which this product is compatible, please see the technical specification below. If the drums you use aren’t in the document, contact us and we can offer advice and guidance.

OPTIONAL FEATURE

Load-cell weighing system

With our load-cell system you can weigh drums while you handle them. A display provides real-time weight information for quantity-sensitive processes.

Technical Specifications

  • Safe working load (SWL) | 770 pounds

  • Leg design | Straddle legs, maximum width 48”mm

  • Pallet approach | Designed for lifting from the corner of a pallet

  • Drum compatibility | Steel, plastic and fibreboard drums, 13-58 gallons (incl. MAUSER drums)

  • Drum gripping catch | Adjustable catch for different drum lips, catch is also height adjustable

  • Lift stroke | 20”

  • Under-drum clearance | 15”

  • Lifting system | Hydraulic 17cc hand-operated pump with lowering valve

  • Guarding | Shatterproof clear polycarbonate

  • Metal preparation | Grit blasted mild steel, aqua blasted stainless steel parts

  • Surface finish | Primer and polyester powder coated mild steel, stainless steel is smooth and clean

  • Unit colour | RAL 5010 (blue)

  • Front wheel type | Fixed 6”, precision bearings

  • Front wheel material | Nylon centred, elasticated rubber tyres

  • Rear wheel type | Braked castors 4”, precision bearings

  • Rear wheel material | Aluminium centred, polyurethane tyres
